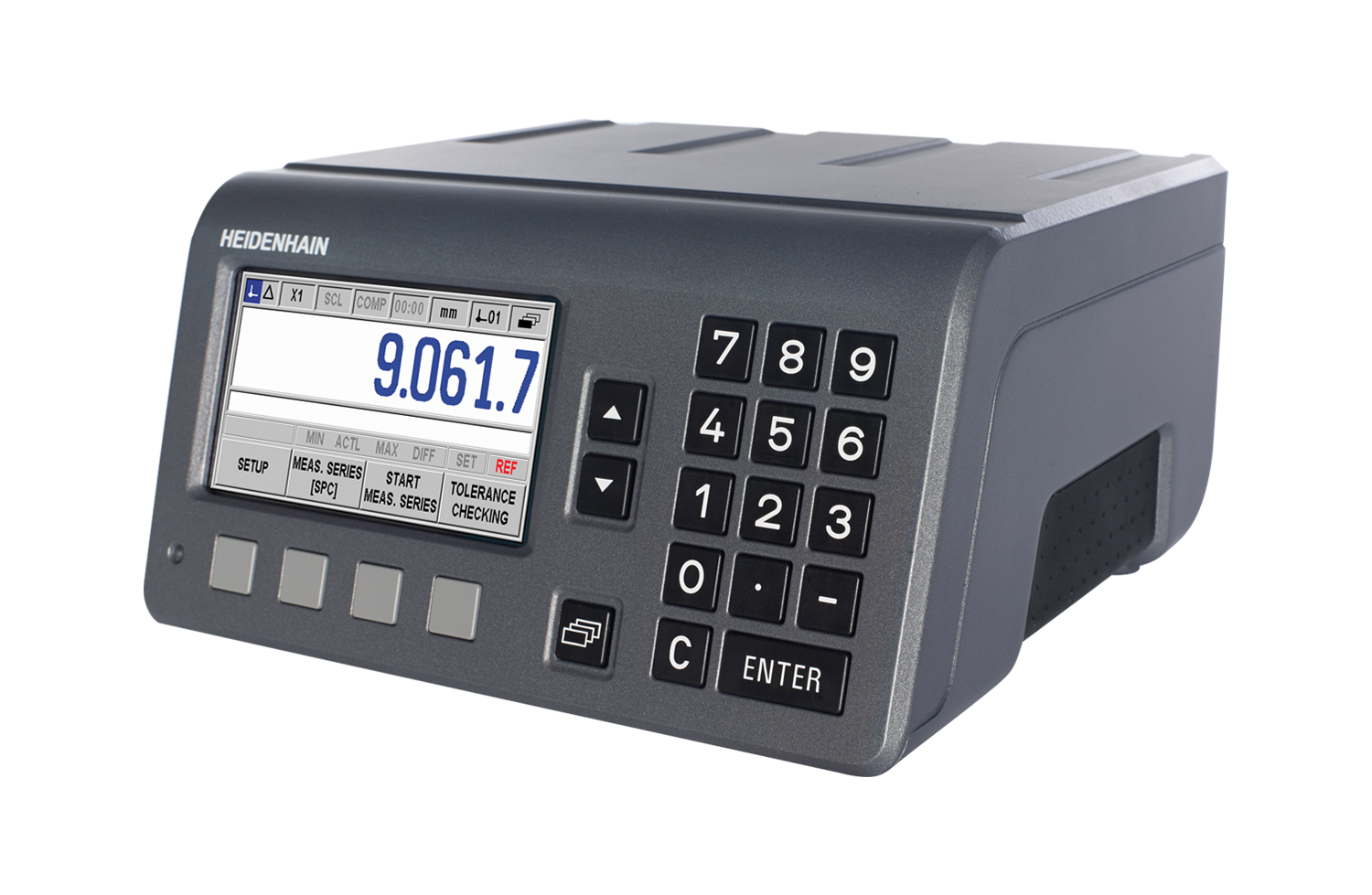

ND 200 series

Readout for measuring and positioning tasks with up to two axes

Easy operation and user guidance
Recording and evaluation of measurement series
Statistical Process Control (SPC)
Graphical evaluations
Switching functions for simple automated tasks

Standardized data interfaces

The ND 200 digital readouts are equipped with serial interfaces (USB and V.24/RS-232-C) for transmitting measurements to a PC, inputting and outputting parameters and compensation value lists, and running diagnostics.

Convenient part sorting

The sorting function allows workpieces to be checked for dimensional accuracy and classified. For automation solutions, you can further process these classification signals through integrated switching outputs.

Fail-safe memory

To prevent losing data during a power failure, up to 1000 measured values are stored in the nonvolatile FIFO memory for Statistical Process Control (SPC).

Statistical evaluations

The ND 200 series digital readouts let you save multiple measurement series and display maximum, minimum, or difference values for review. These values can be checked for tolerance compliance via sorting functions.

Contact person – Sales

International Sales

+49 8669 31-3142

internationalsales@heidenhain.de

Find your nearest representative

Downloads

Brochure: Evaluation Units

User Documentation

Application-oriented design

Information about the product

Click the plus signs to learn more about the product.

Universal encoder input

Connection with automatic interface detection of all incremental encoders with 11 µApp and 1 Vpp as well as absolute encoders with the EnDat 2.2 interface from HEIDENHAIN

Compact display

Display of position values, dialog boxes, input fields, graphing functions, and soft keys

Robust enclosure and keyboard

The robust aluminum enclosure and splash-proof full-travel keyboard make the ND 200 suitable for the workshop
